Description
Complete Technical Parameter Table Of EP-4M-200/4.5 Coal Seam Air Compressor
| Parameter Item | Specifications |
|---|---|
| Official Model | EP-4M-200/4.5 Coal Seam Air Compressor |
| Structural Type Options | M / D / P / L / Z multi reciprocating forms |
| Single Machine Exhaust Flow | 2 – 500Nm³/min adjustable |
| Compression Medium | Coal seam gas, coalbed methane, all coal gas medium |
| Discharge Pressure Range | 0.1MPa – 32.00MPa customizable |
| Matching Motor Power | 5.5KW – 10000KW full power spectrum |
| Max Piston Force | 1.5T – 150T heavy-duty piston assembly |
All parameter indicators of EP-4M-200/4.5 coal seam air compressor support personalized modification according to client site conditions. Our engineering team adjusts cylinder series, piston force and motor configuration to match low, medium and high-pressure working demands of coal mine gas drainage and CBM pipeline transmission, delivering tailor-made coal seam compression system solutions without standard model performance limitations.
What Is A Coal Seam Air Compressor?
A coal seam air compressor, also widely known as coalbed methane compressor or CBM compressor, is a specialized positive-displacement compression device designed exclusively to collect, pressurize and transport coal seam gas extracted from underground coal strata. Unlike standard industrial air compressors that only handle clean atmospheric air, the EP-4M-200/4.5 coal seam air compressor is engineered to process impure coal gas mixed with methane, nitrogen, water vapor and trace corrosive mineral impurities, making it irreplaceable for coal mine gas drainage, unconventional natural gas exploitation and low-carbon energy recovery projects. Conventional screw air compressors cannot withstand the complex medium characteristics of raw coal seam gas, which is why professional reciprocating coal seam compressors like our EP-4M-200/4.5 model become the core equipment for every large-scale coalbed methane gathering station. This series coal seam air compressor covers a wide power range from 5.5KW to 10000KW, with adjustable exhaust flow of 2–500Nm³/min and discharge pressure spanning 0.1MPa to 32.00MPa, fully matching the variable gas output of different coal seam mining zones.
Working Principle Of EP-4M-200/4.5 Coal Seam Air Compressor
2.1 Core Reciprocating Compression Mechanism

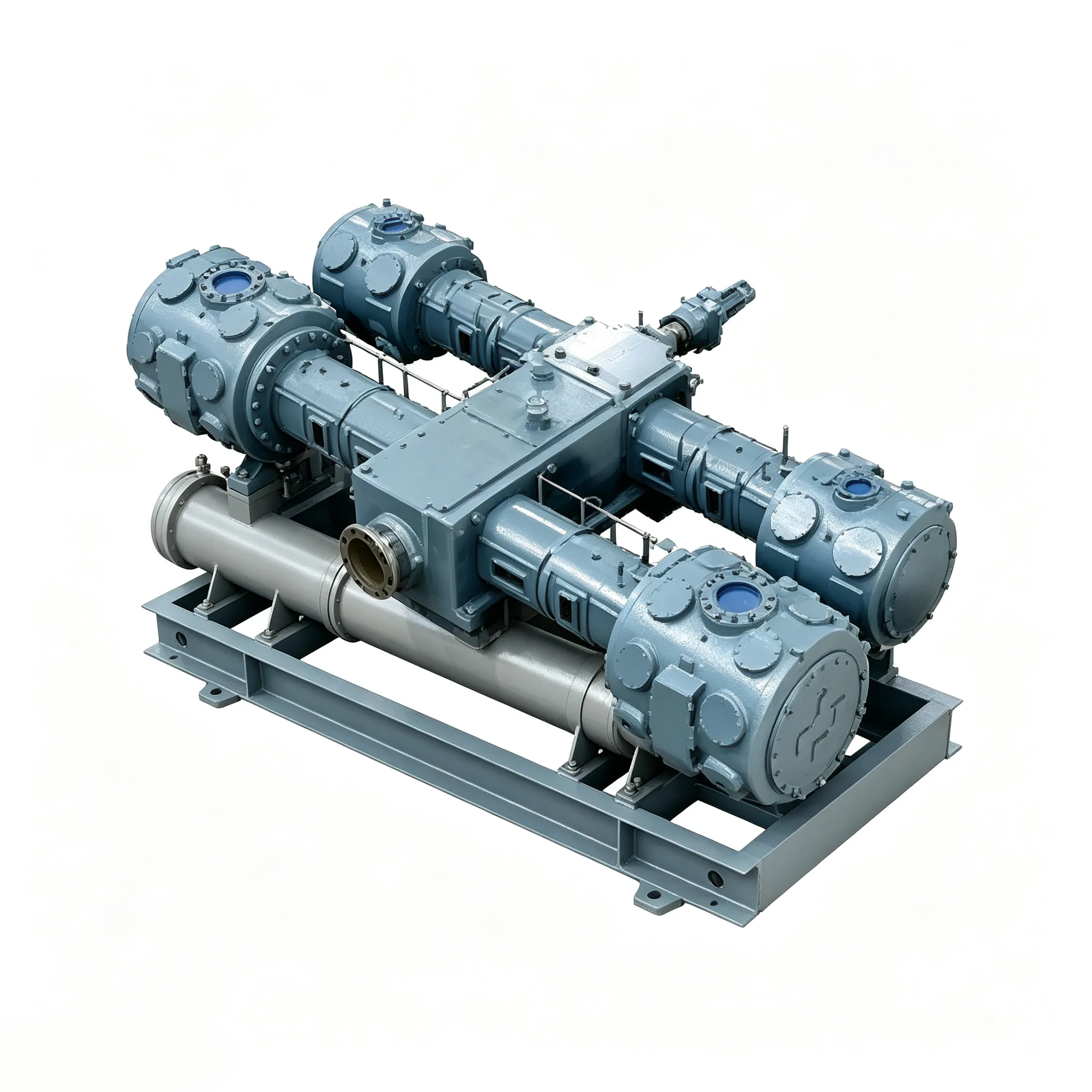

The EP-4M-200/4.5 coal seam air compressor adopts mature 4M symmetrical balanced reciprocating structure, one mainstream type of multi-row coal seam air compressor among M, D, P, L, Z configurations. Its driving system transmits torque through heavy-duty crankshafts and connecting rods to push multi-group pistons for linear reciprocating motion inside alloy anti-corrosion cylinders. In the intake stroke, piston backward movement expands cylinder volume, opening special anti-block intake valves to suck low-pressure raw coal seam gas from mining pipelines; during compression stroke, forward piston movement shrinks sealed cavity volume to raise gas pressure gradually, and high-pressure coal seam gas flows out through explosion-proof exhaust valves to subsequent separation and storage equipment. The whole circulation repeats continuously to realize stable continuous pressurization of coalbed methane, solving the low initial pressure problem of gas directly discharged from coal wellheads.
2.2 Supporting Safe Circulation & Purification Subsystem
Every complete EP-4M-200/4.5 coal seam air compressor unit is matched with integrated water cooling, gas-liquid separation and intelligent anti-explosion protection subsystems tailored for coal gas media. Raw coal seam gas carries large amounts of condensed water and coal dust, so a front-mounted three-stage separation tank filters liquid impurities before gas enters compression cylinders to avoid destructive liquid impact damage to pistons and valve plates. The closed circulation cooling system maintains constant cylinder operating temperature, preventing overheating risks caused by adiabatic compression of flammable coal seam gas. Real-time pressure, temperature and vibration sensors feed data to the PLC control cabinet; once abnormal parameters exceed safety thresholds, the coal seam air compressor triggers automatic shutdown and audible alarm to eliminate explosion hazards in gas gathering stations.
Key Differences Between Coal Seam Air Compressor & Ordinary Industrial Compressors
Many factory procurement teams confuse coal seam air compressors with common water-injected screw air compressors or standard reciprocating air pumps, yet the two equipment categories bear essential gaps in medium adaptability, pressure range, explosion-proof performance and structural design. The EP-4M-200/4.5 coal seam air compressor is optimized around flammable, impure coal gas, while conventional compressors are only qualified to process clean dry air for general pneumatic tools. The following comparison sorts out core distinctions for buyers to avoid wrong model selection that leads to gas leakage or safety accidents at coal mine sites.
| Comparison Dimension | EP-4M-200/4.5 Coal Seam Air Compressor | General Screw / Reciprocating Air Compressor |
|---|---|---|
| Applicable Compression Medium | Coal seam gas, coalbed methane, flammable coal gas mixture | Clean dry atmospheric air only |
| Maximum Discharge Pressure | Up to 32.00MPa high-pressure output | Max 1.6MPa low to medium pressure range |
| Explosion-Proof Standard | Full Ex-proof motor, electrical cabinet and valve assembly | No mandatory explosion-proof configuration |
| Internal Material Corrosion Resistance | Alloy anti-corrosion cylinder, stainless gas pipeline | Ordinary carbon steel for dry air working condition |
| Anti-Liquid-Impact Protection | Three-stage gas-liquid separation preprocessing system | No supporting liquid impurity removal device |
| Core Application Scenarios | Coal mine gas drainage, CBM gathering & pipeline transportation | Food, electronics, general machinery pneumatic power supply |
The most prominent advantage of our EP-4M-200/4.5 coal seam air compressor lies in its ultra-wide adjustable flow and pressure parameters, which can adapt to unstable gas output from early, mid and late-stage coal mining wells. Conventional compressors will face severe efficiency attenuation when handling fluctuating gas volume, while the multi-stage compression design of this 4M type coal seam air compressor automatically matches compression ratios according to real-time inlet gas pressure, greatly improving overall gas recovery efficiency for coal enterprises.
Main Industrial Application Fields For EP-4M-200/4.5 Coal Seam Air Compressor
As a versatile large-scale coal seam air compressor covering power from 5.5KW to 10000KW, the EP-4M-200/4.5 4M reciprocating unit serves multiple energy and chemical industries that rely on coalbed methane resource utilization. Each industry puts forward differentiated demands on exhaust pressure and gas handling capacity, and our customizable M/D/P/L/Z type structural series can deliver targeted compression solutions for different working conditions of coal seam gas collection, storage and transmission.
Coal Mine Gas Drainage & Utilization
This is the core application of coal seam air compressor. Underground coal mines extract low-pressure coalbed methane to prevent gas explosion risks; EP-4M-200/4.5 pressurizes collected gas for power generation boilers, realizing waste gas resource recycling and meeting national mine safety emission standards.
Unconventional CBM Gathering Station
Large coalbed methane development bases deploy multiple EP-4M-200/4.5 coal seam air compressors to boost dispersed wellhead gas into long-distance transmission pipelines, with adjustable 0.1–32MPa pressure adapting to long-distance transportation pressure loss requirements.
Chemical & Gas Power Generation Plants
Coal seam gas after compression acts as clean fuel for gas turbines and chemical synthesis raw materials. The explosion-proof design of this coal seam air compressor eliminates hidden dangers of flammable gas leakage in chemical workshop production lines.
LNG & CNG Filling Station Prepressurization
Mid-pressure EP-4M-200/4.5 coal seam air compressor models pre-compress purified coalbed methane to meet inlet pressure standards of liquefaction and compression filling equipment for vehicle natural gas production.
Landfill & Biogas Compression Projects
The anti-corrosion cylinder structure of this coal seam air compressor is compatible with biogas containing carbon dioxide impurities, providing stable pressurization equipment for municipal waste biogas recovery power generation projects.
Metallurgical Factory Waste Gas Recycling
Low-pressure coal seam air compressor variants recycle furnace coal gas discharged from smelting workshops, converting waste combustible gas into auxiliary heating fuel to lower factory energy procurement costs significantly.
Verified Customer Reviews For EP-4M-200/4.5 Coal Seam Air Compressor
After mass delivery of EP-4M-200/4.5 coal seam air compressor units to domestic and overseas coalbed methane mining bases, we have collected authentic feedback from operation managers, covering equipment stability, energy consumption and after-sales technical service performance, serving as reliable reference for new buyers selecting professional coal seam compression equipment.
“Our coal mine deployed three sets of EP-4M-200/4.5 coal seam air compressors for underground gas drainage two years ago. The 4M symmetrical balance structure brings ultra-low vibration during 24-hour continuous operation, and the built-in gas-liquid separation system completely solves the liquid impact fault that frequently appeared on our old reciprocating coal compressors. Monthly maintenance workload is cut by more than half, and the explosion-proof electrical system fully passes local coal safety bureau regular inspections.”
“We operate a 12-well coalbed methane gathering station and chose EP-4M-200/4.5 coal seam air compressor for medium-pressure pipeline transportation. The adjustable exhaust flow from 2Nm³/min to 200Nm³/min perfectly matches unstable gas output of different mining wells. Compared with imported coal seam compressors we used before, this model reduces overall power consumption by around 11%, and spare parts supply is faster without long overseas delivery cycles.”
“Our chemical plant purchases two EP-4M-200/4.5 coal seam air compressors to pressurize coal gas as synthetic fuel raw material. The all-stainless internal pipelines resist sulfur-containing corrosive impurities in coal seam gas, and the intelligent PLC automatic control system realizes unattended operation. Technical engineers provided on-site installation and parameter debugging service, greatly shortening our project commissioning cycle.”
