Is a Water-Injected Screw Compressor Truly 100% Oil-Free?

The “Oil-Free” Label: What It Means and What It Does Not

Walk through any industrial compressor catalogue and you will find the term “oil-free” applied to machines with very different designs and very different actual air purity levels at the outlet. The label describes a feature of the compression technology — specifically that no lubricating oil is used inside the compression chamber — but it says nothing definitive about the oil content of the compressed air produced. A dry oil-free screw compressor with worn shaft seals leaking gear oil vapour into the compression chamber is technically “oil-free by design” but may be delivering measurable oil into the air stream. An oil-injected machine with a freshly replaced, properly specified activated carbon adsorber can deliver air with lower measurable oil content than a poorly maintained dry oil-free machine. The only statement that carries meaningful weight is not “oil-free compressor” but “ISO 8573-1 Class 0 verified at the package outlet under continuous operating conditions, confirmed by third-party accredited test report.” Everything else is a description of design intent, not a measurement of what the machine actually delivers.

Is water-injected compressor truly 100% oil-free

Why Water Injection Provides Structural Oil-Free Assurance

A water-injected oil-free screw compressor achieves oil-free output through what engineers call a structural guarantee — one that is built into the physical architecture of the machine rather than dependent on a consumable component performing correctly. There is no lubricating oil anywhere in the compression system: no oil reservoir, no oil pump, no oil circuit, no oil seals between an oil-containing space and the compression chamber. The only medium that contacts both the rotors and the compressed air is purified water. This means that even in a degraded maintenance state — with an overdue water filter, a slightly worn water pump, or a partially blocked injection nozzle — the oil content of the output air remains zero, because there is no oil in the system to carry over. The water-injected design eliminates not just oil contamination but the entire contamination pathway that makes oil contamination possible in other technologies.

This structural assurance is what distinguishes water-injected oil-free technology from both dry oil-free and oil-injected alternatives in the context of regulatory compliance. For a pharmaceutical quality manager preparing for an FDA inspection, a food safety manager conducting a BRC audit, or an electronics plant running a cleanroom qualification, the ability to state “no oil exists in the compressed air system” is qualitatively different from “oil is filtered out by maintained consumable components.” The first is an architectural fact. The second is a maintenance-dependent claim. Both can achieve Class 0 in practice — but only one removes the contamination pathway entirely.

Oil-Free Claims Compared Across Technologies

Criterion Water-Injected Dry Oil-Free Oil-Injected + Filters
Oil in compression system None Timing gear oil only Yes — in chamber
Oil contamination pathway Eliminated Shaft seal leakage risk Active — filter dependent
Class 0 assurance type Structural (design) Design + seal integrity Maintenance dependent
Carbon adsorber required No No (usually) Yes — mandatory
Risk if maintenance overdue Water quality / particulate Gear seal degradation Oil enters air stream
ISO 8573-1 Class 0 achievable Yes — inherent Yes — with care Yes — when maintained

What the Water Circuit Introduces: Honest Assessment

Being rigorous about “truly 100% oil-free” requires acknowledging what the water circuit does introduce, even though oil is not among its contributions. The compressed air leaving a water-injected compressor after the water separator carries residual water vapour and fine water droplets that must be removed by downstream drying and filtration. The water itself — if circuit quality management fails — can carry dissolved CO₂, trace mineral deposits from RO membrane breakthrough, or biological matter from circuit contamination. None of these are oil, and none threaten ISO 8573-1 Class 0 oil compliance. But they can affect particulate class and dew point class compliance, which is why the complete compressed air quality specification covers all three contaminant categories — not just oil.

A properly maintained water-lubricated oil-free screw compressor with a functioning downstream treatment train delivers compressed air that is genuinely 100% oil-free, well within particulate Class 1–2, and at a pressure dew point well below the process requirement. The combination of oil-free compression technology and appropriate downstream treatment is the complete answer to the question — not the compressor alone, and not the filters alone.

How to Confirm “Truly Oil-Free” Before Committing to a Purchase

Step 1 — Request the test report
Ask for the third-party accredited laboratory test report for oil aerosol, oil vapour, and total oil content. Confirm the measurement was taken at the complete package outlet, not the bare compressor.

Step 2 — Check the lab’s accreditation
The laboratory must be accredited under ISO/IEC 17025 by a national accreditation body (UKAS, DAkkS, CNAS, etc.). An in-house test report from the manufacturer’s own lab does not constitute independent verification.

Step 3 — Confirm test conditions
Verify that the test was conducted under steady-state full-load operating conditions, not at a single operating point or under favourable part-load conditions that do not represent worst-case output.

Step 4 — Check the ISO 9001 certificate
ISO 9001:2015 manufacturing certification confirms that the production process is formally controlled and that the tested unit is representative of standard production, not a specially prepared prototype.

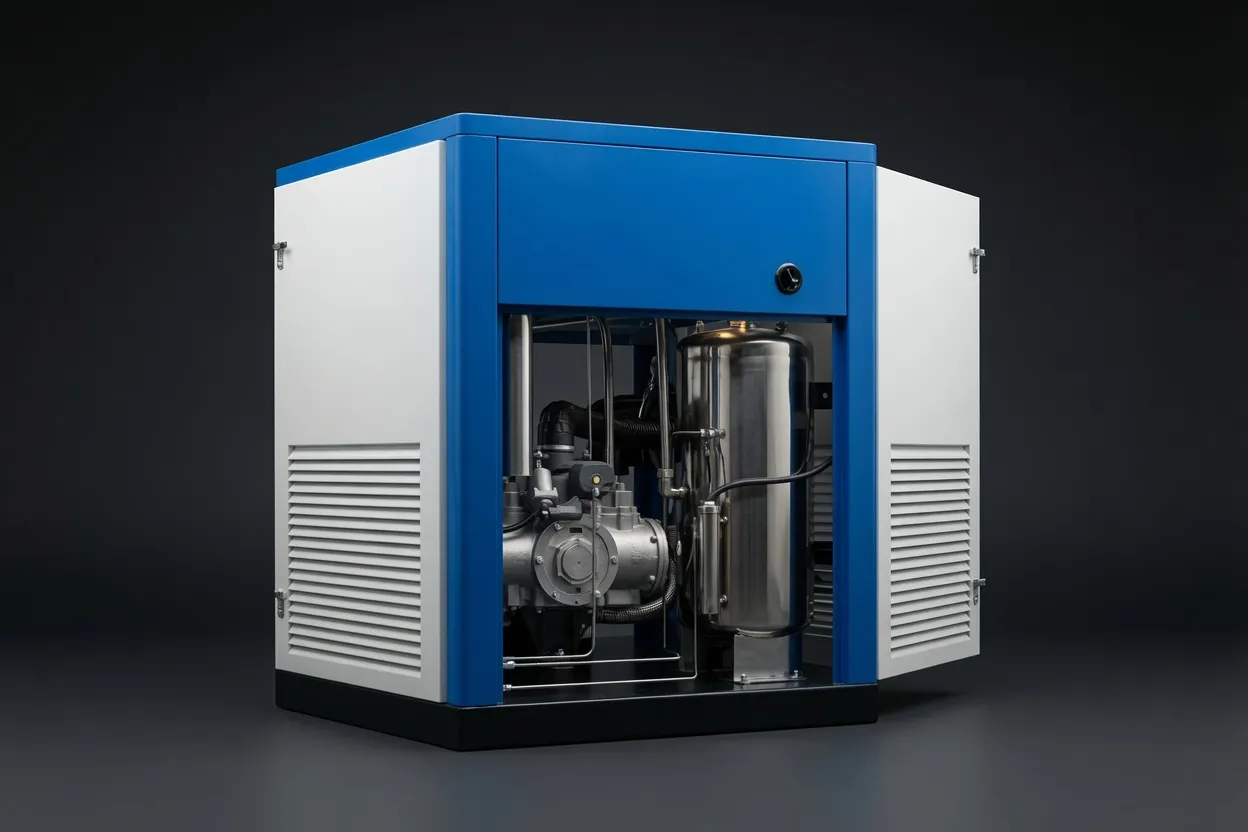

Verified 100% oil-free water-injected compressor

Frequently Asked Questions

Can a water-injected compressor ever produce air with oil in it?+
No — there is no oil anywhere in the water-injected compression system to carry over into the output air. The only medium that contacts both the rotors and the compressed air is purified water. Contamination of the output air with oil is not a failure mode of water-injected technology; it would require oil to be introduced externally, such as through cross-connection with an oil-containing system in the distribution pipework.
Is “oil-free by design” the same as ISO 8573-1 Class 0 certified?+
No. “Oil-free by design” describes the compression technology. ISO 8573-1 Class 0 certified describes a measured, documented outcome at the package outlet confirmed by an accredited third party. A machine can be oil-free by design and still fail to achieve Class 0 at the outlet if the water separator, downstream filter, or dryer is not performing correctly. You need both: oil-free compression technology and a verified, documented Class 0 test result.
Does water-injected technology give a HACCP advantage in food plants?+
Yes, directly. In a HACCP plan for a food facility using oil-injected compressed air, the oil removal filter system constitutes a Critical Control Point — a point where failure to maintain the filter results in a food safety hazard. With water-injected technology, no oil exists in the system, so this CCP is eliminated from the HACCP plan entirely. Fewer CCPs mean a simpler quality management system and lower audit burden — a genuine operational benefit beyond the technical air purity argument.
What does a credible Class 0 test report look like?+
A credible Class 0 report includes: the testing laboratory name and ISO/IEC 17025 accreditation number; the compressor model and serial number tested; the measurement point (complete package outlet, not bare compressor); the test conditions (inlet pressure, temperature, humidity, discharge pressure, load); numerical results for oil aerosol mg/m³, oil vapour mg/m³, and total oil mg/m³; and the stated detection limits of the test methods used. A report that simply states “Class 0 achieved” without numerical values and test condition details is insufficient for regulatory audit purposes.
Should I monitor oil content continuously at point of use?+
For pharmaceutical and medical applications, continuous or periodic point-of-use oil monitoring is typically required by GMP regulations, regardless of compressor type. For food applications, the BRC standard requires periodic testing. For electronics, the frequency depends on the facility’s quality management system. With a water-injected compressor, continuous oil monitoring at the compressor outlet is unnecessary because the contamination pathway does not exist — but point-of-use monitoring remains valuable to detect contamination introduced elsewhere in the distribution system.

Receive the Full Oil-Free Verification Package

Contact Hangzhou Ever Power for the complete ISO 8573-1 Class 0 test report, ISO 9001 certificate, and material compliance documentation for your compliance audit.
